UG filter is widely used in steam, air, water, oil and other systems pipelines, filters are to protect a variety of meters, pumps, valves, traps and other equipment.

Type UG filter has small pressure loss, large flow area and strong resistance to dirt. Sewage is convenient.

Main performance parameters


型號
公稱壓力
工作溫度(℃)
濾網目數
適用介質
UG-A
2.0
300
20~150
蒸汽、空氣、水、油
UG-B
5.O
425
20~150
蒸汽、空氣、水、油


Material of main parts


UG-B型過濾器
UG-A型過濾器
零件名稱
材料
閥體
碳鋼、不銹鋼
濾網蓋
碳鋼、不銹鋼
濾芯網
不銹鋼
墊片
金屬石墨

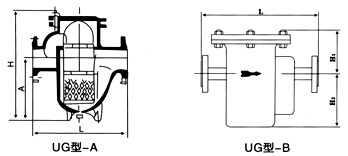

Main dimensions of type UG-A filter


型號
公稱通徑(DN)
外形尺寸
A
L
H
UG型一A
10
150
80
125
15
150
80
125
20
180
100
153
25
180
100
153
40
200
155
304
50
300
155
340
65
340
220
380
80
400
250
420
100
500
295
502
150
600
335
650
200
786
395
770


Main dimensions of type UG-B filter


UG型一B
公稱通徑 (DN)
外形尺寸 (mm)
L
H1
H2
15
270
90
145
20
270
90
145
25
270
90
145
32
320
125
175
40
320
125
175
50
320
125
175
65
430
140
220
80
430
140
220
100
430
140
220
125
460
160
235
150
460
170
235
200
460
190
235
