J941H electric flange globe valve is suitable for cutting off or connecting pipeline medium in petroleum, chemical, pharmaceutical, fertilizer and electric power industry with nominal pressure PN1.6-16MPa and working temperature-29-550 C. The driving mode is manual, gear drive, electric, pneumatic and so on.


Application standards of electric flange shut-off valves


設計與制造
GB/T12235
連接端尺寸
結構長度
GB/T12221
法蘭尺寸
JB/T79
檢驗與試驗
JB/T9092
材 料
碳鋼
GB/T12229
不銹鋼
GB/T12230
合金鋼
Q/ZB66
標 志
GB/T12220
供 貨
JB/T7928


Structural features of electric flange cut-off valve


1, material selection, in line with domestic and foreign standards, reasonable structure, beautiful appearance.


2. The sealing surface of disc and seat is made of iron-based alloy surfacing or Stellite cobalt-based cemented carbide surfacing. It has good wear resistance, high temperature resistance, corrosion resistance, scratch resistance and long service life.


4. The valve stem is quenched and tempered and nitriding on surface. It has good corrosion resistance and abrasion resistance.


5. Various pipe flange standards and flange sealing surface types can be adopted to meet various engineering requirements and user requirements.


6. The valve body material variety is complete, the packing, the gasket may according to the actual working condition or the user request reasonable choice, can apply to each kind of pressure, the temperature and the medium working condition.


7. The inverted seal is made of austenitic stainless steel which is connected by threads or welded on the body. The sealing is reliable. The replacement of filler can be carried out without stopping the machine. It is convenient and quick, and does not affect the operation of the system.


8. Equipped with DZW series multi-rotary electric equipment, with small shell, light weight, full-featured, and can be used with remote computer matching, can also be selected according to user requirements.


Main parts of electric flange valve


閥體
閥蓋
閥瓣
密封圈
閥桿
填料
適用介質
適用溫度
(≤℃)
WCB
WCB+D507MO
D577
2Crl3
柔性石墨
水、油品、蒸汽
425
ZGlCrl8Ni9Ti
0Crl8Ni9Ti+
Stellite12
Stellite6
lCrl8Ni9Ti
PTFE
硝酸類
200
ZGlCrl8Ni2Mo2Ti
CF8M+
Stellite12
lCrl8Ni2Mo2Ti
lCrl8Ni2Mo2Ti
PTFE
磷酸類、
堿類、混酸
200
ZG00Crl7Nil4M02
CF3M+
Stellite12
Stel1ite6
316L
PTFE
磷酸類、
尿素、甲銨液
200
ZGlCr5MO
ZGlCr5MO+
Stellite12
Stel1ite6
25Cr2Mo1VA
柔性石墨
水、油品、蒸汽
550

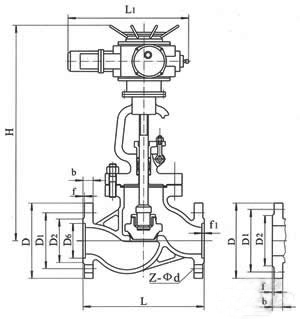

Main dimensions of electric flange shut-off valves


公稱壓力
PN(MPa)
公稱通徑
DN(mm)
標準值
參考值
L
D
D1
n2
D6
b
f
f1
Z-φd
L1
H
重量
1.6
50
230
160
125
100
16
3
4-φ18
590
645
48
65
290
180
145
120
18
3
4-φ18
590
690
60
80
310
195
160
135
20
3
8-φ18
590
715
65
100
350
215
180
155
20
3
8-φ18
590
770
71
125
400
254
210
185
22
3
8-φ18
590
780
119
150
480
280
240
210
24
3
8-φ23
590
810
210
200
600
335
295
265
26
3
12-φ23
810
967
320
250
622
405
355
320
30
3
12-φ25
810
1143
550
300
698
460
410
375
30
4
12-φ25
830
1292
785
2.5
50
230
160
125
100
20
3
4-φ18
590
645
50
65
290
180
145
120
22
3
8-φ18
590
690
65
80
310
195
160
135
22
3
8-φ18
590
715
67
100
350
230
190
160
24
3
8-φ23
590
770
73
125
400
270
220
188
28
3
8-φ25
590
780
127
150
480
300
250
218
30
3
8-φ25
810
810
215
200
600
360
310
278
34
3
12-φ25
810
967
322
250
622
425
370
332
36
3
12-φ30
830
1143
585
300
698
485
430
390
40
4
16-φ30
830
1292
795
4.0
50
230
160
125
100
88
20
3
4
4-φ18
590
645
61
65
290
180
145
120
110
22
3
4
8-φ18
590
690
75
80
310
195
160
135
121
22
3
4
8-φ18
590
715
84
100
350
230
190
160
150
24
3
4.5
8-φ23
590
770
101
125
400
270
220
188
176
28
3
4.5
8-φ25
810
782
207
150
480
300
250
218
204
30
3
4.5
8-φ25
810
875
226
200
600
375
320
282
260
38
3
4.5
12-φ30
810
1160
399
6.4
50
300
175
135
105
88
26
3
4
4-φ23
590
710
64
65
340
200
160
130
110
28
3
4
8-φ23
590
750
77
80
380
210
170
140
121
30
3
4
8-φ23
590
785
86
100
430
250
200
168
150
32
3
4.5
8-φ25
810
837
171
125
500
295
240
202
176
36
3
4.5
8-φ30
810
1031
243
150
550
340
280
240
204
38
3
4.5
8-φ34
830
1066
296
200
650
405
345
300
260
44
3
4.5
12-φ34
830
1213
420
10.0
50
300
195
145
112
88
28
3
4
4-φ25
590
714
81
65
340
220
170
138
110
32
3
4
8-φ25
590
734
102
80
380
230
180
148
121
34
3
4
8-φ30
810
847
175
100
430
265
210
172
150
38
3
4.5
8-φ30
810
950
194
125
500
310
250
210
176
42
3
4.5
8-φ34
830
1141
285
150
550
350
290
250
204
46
3
4.5
12-φ34
830
1240
450
200
650
430
360
312
260
54
3
4.5
12-φ4l
830
1425
850
16.0
50
300
215
165
132
88
36
3
4
8-φ25
590
562
92
65
340
245
190
152
110
44
3
4
8-φ30
810
743
165
80
380
260
205
168
121
46
3
4
8-φ30
830
820
216
100
430
300
240
200
150
48
3
4.5
8-φ34
830
935
238
