ZJHP pneumatic membrane single seat regulating valve is composed of pneumatic multi-spring membrane actuator and low flow resistance single seat valve. The new actuator is low in height, light in weight, simple in equipment, compact in structure, smooth in flow passage, and has large flow coefficient. ZJHP miniature pneumatic single-seat regulating valve has stable operation, reliable operation characteristics, small seat leakage, accurate flow characteristics, wide adjustable range and other characteristics. It will achieve high quality control effect in wide application with unique advantages. The products are of standard type, adjustable cut-off type, bellows seal type, jacket insulation type and so on. Suitable liquid temperature ranges from -200 to +560 degrees.




Pneumatic single seat regulating valve main parts material



零件名稱
材料
溫度范圍
閥體上閥蓋
HT200
-20~200℃
ZG230-450
-40~450℃
ZG1Cr18Ni9Ti
-250~550℃
ZG0Cr18Ni12Mo2Ti
-250~550℃
閥芯、閥座
1Cr18Ni9
-250~550℃
0Cr18Ni12Mo2Ti
-250~550℃
填 料
聚四氟乙烯
-40~200℃
膜 片
丁晴橡膠夾增強滌淪織物
壓縮彈簧
60Si2Mn
膜 蓋
A3


Main technical parameters of pneumatic single seat regulating valve


公稱通徑mm
20
25
40
50
65
80
100
150
200
250
300
350
400-500
閥座直徑mm
10
12
15
20
25
32
40
50
65
80
100
125
150
200
250
300
可與蘭博公司
商洽生產
額定流量
系數Kv
直線
1.8
2.8
4.4
6.9
11
17.6
27.5
44
69
110
176
275
440
690
1000
1600
等百分比
1.6
2.5
4
6.3
10
16
25
40
63
100
160
250
400
630
900
1440
公稱壓力MPa
0.6 1.6 4.0 6.4
行程mm
10
16
25
40
60
100
流量特性
直線、等百分比、快開型
介質溫度℃
-40~230℃(常溫型),散熱片式230~450℃(中溫型),特殊訂貨-100~600℃
法蘭標準
符合JB78-59、JB79-59標準,可按JB/79.1-94、JB/79.2-94、ANSI、JIS、DIN 等標準訂貨生產
閥體材質
PN
(MPa)
0.6,1.6
WCB(ZG230-450) CF3CF8 CF8M
4.0,6.4
WCB(ZG230-450)、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti CF8 CF8M
閥體型式
直通單座鑄造球型閥
閥芯材質
1Cr18Ni9、0Cr18Ni12Mo2Ti CF8 CF8M
上閥蓋形式
普通式(常溫型)、熱片式(中溫型)、低溫型
可調比R
50:1
氣源接頭
M16×1.5


Note: ANSI and JIS flanges can be provided for users. The length of the structure can also be determined according to the needs of users.


Pneumatic single seat regulating valve actuator


型號
ZHA-22
ZHB-22
ZHA-23
ZHB-23
ZHB-34
ZHB-34
ZHA-45
ZHB-45
ZHA-56
ZHB-56
you效面積cm2
350
350
560
900
1600
行程mm
16
25
40
60
100
彈簧范圍KPa
20~100(標準):40~200;
80~240; 20~60; 60~100


Performance index of pneumatic single seat regulating valve


項目
指標值
項目
指標值
基本誤差%
不帶定位器
±5.0





%
氣關
不帶定位器
始點
±5.0
帶定位器
±1.0
終點
±2.5
回差%
不帶定位器
≤3.0
帶定位器
始點
±1.0
終點
±1.0
帶定位器
≤1.0
氣開
不帶定位器
始點
±2.5
終點
±5.0
死區%
不帶定位器
≤3.0
帶定位器
始點
±1.0
終點
±1.0
帶定位器
≤0.4
允許泄漏量L/h
1×10-4×閥額定容量
額定行程偏差%
±2.5


Allowable pressure difference of pneumatic single seat regulating valve


開關方式
執行機構型號
彈簧范圍KPa
氣源壓力KPa
需要附件
公稱通徑(閥座直徑)mm
25
25
40
50
65
80
100
150
200
250
300
(10)
(12)
(15)
(20)
(32)
(40)
(125)
(150)
關
ZHA
-22
20~100
20~100
40~200
140
250
140
P
P
P或R
6.4
6.4
6.4
5.94
6.4
6.4
3.34
6.4
6.4
3.34
6.4
6.4
2.14
6.4
6.4
ZHA
-23
20~100
20~100
40~200
140
250
400
P
P
P或R
1.31
6.09
6.4
0.84
3.9
5.26
0.53
2.5
3.39
ZHA
-34
20~100
20~100
40~200
140
250
400
P
P
P或R
0.51
2.36
3.21
0.33
1.56
2.12
0.21
1.0
1.35
ZHA
-45
20~100
20~100
40~200
140
250
400
P
P
P或R
0.22
1.02
1.39
0.15
0.71
0.97
0.08
0.40
0.54
ZHA
-56
20~100
20~100
40~200
140
250
400
P
P
P或R
0.06
0.37
0.51
0.04
0.25
0.36
ZHB
-22
20~100
40~200
80~240
140
250
400
P
P或R
P
4.46
6.4
6.4
3.09
6.4
6.4
1.98
5.94
6.4
1.11
3.34
6.4
0.71
2.14
4.99
ZHB
-23
20~100
40~200
80~240
140
250
400
P
P或R
P
0.44
1.37
3.05
0.28
0.84
1.95
0.18
0.53
1.25
ZHB
-34
20~100
40~200
80~240
140
250
400
P
P或R
P
0.17
0.51
1.18
0.11
0.33
0.78
0.07
0.21
0.5
ZHB
-45
20~100
40~200
80~240
140
250
400
P
P或R
P
0.07
0.22
0.51
0.05
0.15
0.35
0.028
0.08
0.20
ZHA
-56
20~100
20~100
40~200
140
250
400
P
P
P或R
0.03
0.09
0.20
0.02
0.06
0.14


Note: 1) P- valve positioner; R- pressure relay;


2) allowable pressure difference is the maximum value of P when the valve is closed P2=0.


3) if the allowable pressure difference is not clear or the maximum working pressure difference exceeds the list scope, please contact us.

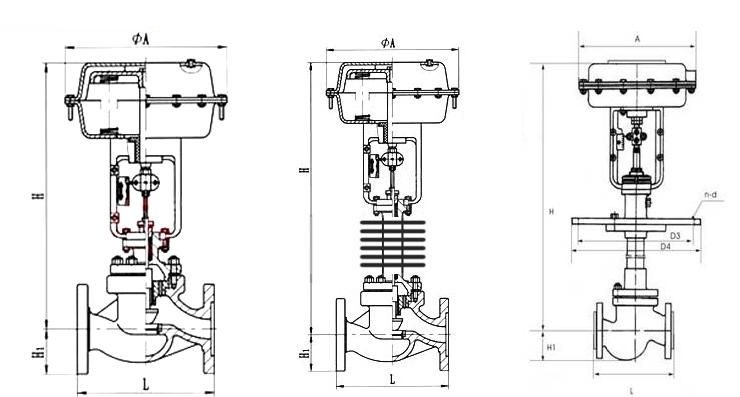

Main dimensions of pneumatic single seat regulating valve
