Product description of EG6K41J British standard open pneumatic diaphragm valve


Design and manufacture: GB122239


Structure length: GB12221, JB1688


Flange connection dimensions: GB4216, JB78 G6B41W non lined diaphragm valves


G6B41J rubber lined pneumatic diaphragm valve, normally open diaphragm valve.


purpose


Usage: This valve is specially used to control non-corrosive or general corrosive media. There is no lining on the inner surface of the valve body or covered with a variety of optional rubber. It is suitable for different working temperatures and fluid pipelines.


Applicable temperature: less than 85 degrees, less than 100 degrees, less than 120 degrees, or less than 150 degrees (according to lining and diaphragm material).


Pressure level: PN0.6, 1, 1.6


Material of main parts


Body: cast iron, ductile iron, carbon steel, stainless steel.


Bonnet: cast iron, ductile iron, carbon steel, stainless steel.


Lining: no lining, rubber.


Diaphragm: Rubber


Disc: cast iron and carbon steel.


Cylinder: ductile iron


Piston: carbon steel


Stem: carbon steel


Hand wheel: Cast Iron


test


Lining layer: EDM test


Test and inspection according to GB/T13297 standard


Nominal pressure: PN (Mpa)


Valve body: PN * 1.5


Sealing: PN x 1.1

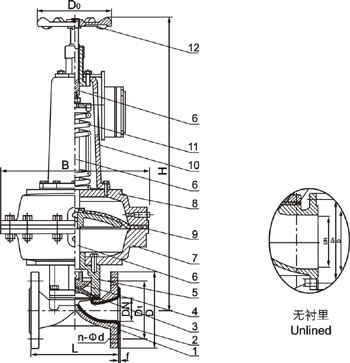

Parts List: 1, Body 2, Body Lining 3, Diaphragm 4, Disc 5, Lower Stem 6, Cover 7, Cylinder 8, Piston 9, Spring 10, Cylinder Head 11, Upper Stem 12, Handwheel

Main dimensions and weight
DN
mm
公稱壓力
MPa
工作壓力
MPa
L
(mm)
D
(mm)
D1
(mm)
n-φd
(mm)
F
(mm)
H1
(mm)
H2
(mm)
D0
(mm)
B
氣源壓力
MPa
氣源接頭
in
耗氣量
cm3
重量
15
0.6
0.6
125
95
65
4-14
2
-
-
-
-
-
-
-
-
20
139
105
75
4-14
2
-
-
-
-
-
-
-
-
25
145
115
85
4-14
2
306
320
120
94
0.4
10×1
2.395×102
7.5
32
160
140
100
4-18
2
410
430
140
120
0.4
12×1.25
6.082×102
14.5
40
180
150
110
4-18
3
415
435
140
120
0.4
12×1.25
6.082×102
16
50
210
165
125
4-18
3
463
488
160
185
0.4
12×1.25
1.235×102
24.5
65
250
185
145
4-18
3
620
660
160
245
0.5
16×1.5
3.725×102
30
80
300
200
160
4-18
3
627
687
200
245
0.5
16×1.5
3.725×103
51.5
100
350
220
180
8-18
3
719
769
240
330
0.5
16×1.5
9.458×103
86.5
125
400
250
210
8-18
3
804
872
320
380
0.5
20×1.5
1.409×104
133
150
460
285
240
8-22
3
920
1000
320
470
0.5
20×1.5
2.868×104
196.5
200
0.4
570
340
295
8-22
4
1145
1265
400
470
0.5
20×1.5
4.619×104
279.5
250
680
395
350
12-22
4
-
-
-
-
-
-
-
