G45J direct current rubber lined diaphragm valve

G45J direct current rubber lined diaphragm valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

Design and manufacture: GB122239


Structure length: GB12221, JB1688


Flange joint dimensions: GB4216, JB78


Application of G45J direct current rubber lined diaphragm valve


The valve is specially designed to control non-corrosive or general corrosive media. There is no lining on the inner surface of the valve body or covered with a variety of optional rubber. It is suitable for different working temperatures and fluid pipelines.


Applicable temperature: less than 85 degrees, less than 100 degrees, or less than 120 degrees (according to lining and diaphragm material).


Pressure level: PN0.6, 1, 1.6


Material Science


Body: cast iron, ductile iron, carbon steel, stainless steel.


Bonnet: cast iron, ductile iron, carbon steel, stainless steel.


Lining: no lining, rubber.


Diaphragm: Rubber


Disc: cast iron and carbon steel.


Stem: carbon steel, stainless steel handwheel: cast iron.


test


Lining layer: EDM test


Test and inspection according to GB/T13297 standard


Nominal pressure: PN (Mpa)


Valve body: PN * 1.5


Sealing: PN x 1.1


Structural characteristics


Diaphragm valve is a special stop valve.


1. The opening and closing parts of the elastic seal ensure that there is no internal leakage.


2, streamlined flow path makes the pressure loss small.


3, there is no stuffing box, so there is no leakage.


4. The valve body and cover are separated by the middle diaphragm so that the valve cover above the diaphragm and the valve stem parts are not eroded by the medium.


5, the diaphragm can be replaced and the maintenance cost is low.


6. The variety of lining materials can be applied to all kinds of media and has good corrosion resistance.

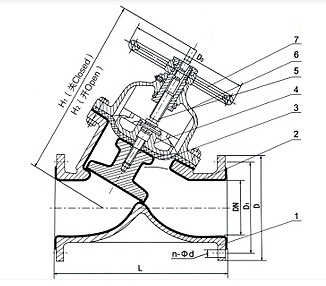

Parts list: 1, body 2, valve body lining 3, diaphragm 4, disc 5, stem 6, valve cap 7, handwheel.


Main dimensions and weight


DN
mm
公稱壓力
MPa
工作壓力
MPa
L
(mm)
D
(mm)
D1
(mm)
n-φd
(mm)
F
(mm)
H1
(mm)
H2
(mm)
D0
(mm)
質(zhì)量
25
0.6
0.6
145
115
85
4-14
2
178
190
120

32
160
140
100
4-18
2
196
217
140

40
180
150
110
4-18
3
196
217
140
14
50
210
165
125
4-18
3
219
240
200
20
65
250
185
145
4-18
3
264
272
200
29
80
300
200
160
4-18
3
285
315
280
42
100
350
220
180
8-18
3
352
383
320
61
125
400
250
210
8-18
3
470
515
320
79.5
150
0.4
460
285
240
8-22
3
508
554
400
150
200
570
340
295
8-22
4
602
660
500
236.5
250
680
395
350
12-22
4
708
786
500

300
790
445
400
12-22
4





The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.G45J direct current rubber lined diaphragm valvePlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
